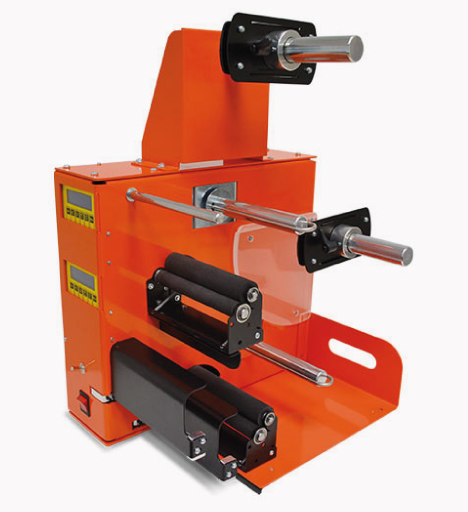

DPR Electronic Double Dispenser

DPR Double Electronic Dispenser is the ideal solution for your label handling operations like the food packaging sector. Versatile, simple to use, reliable and tough, our double electronic dispenser is able to dispense labels of varying type and size from two different rolls at the same time and will make it easy for you to apply labels in your manufacturing process.

Electrical Features

• External auto-switching 100/240V power supply

• Protection fuse

• Photocells for the label’s detection

• Tachymeter for the control of the label’s length to detach

Mechanical Features

• Dimensions Width: 570mm;

• Dimentions Height: 240mm; Depth: 410mm

• Roll Diameter: up to 300mm

• Core Holder: from 32mm on

• Label Width: up to 150mm

Software Control Characteristics

• Personalization of the company’s name
• Control of the photocells’ functionality
• Setting of the labels’ number to detach from 0 up to 9999
• Constant visualization of the detached labels’ number
• Acoustic signal when the number of detached labels reaches the preset quantity
• Setting of series from 2 to 3 labels of different length
• Constant visualization of the detached labels’ series’ number
• Acoustic signal when the detached labels’ series’ number reaches the preset quantity
• Setting of the label’s length to detach
• 3 types of advancing:
– Automatic
– Timed
– Manual by pushing ESC or the optional pedal
